SMA Metal Support Self-Levelling Fire Rated Pedestals
Our fire-rated pedestals provide unmatched fire resistance, supporting over 5 tonnes per pedestal, with versatile installation options for raised access flooring.
✅ Self-levelling head compensates for slopes up to 5%
✅ Adjustable height with galvanized steel for durability
✅ Free Delivery on orders over £500
✅ Thousands of happy customers
✅ 2-3 Working Day Delivery
Priced per unit
Unsure exactly what pedestals you need for your next project?
Click below to submit your details to speak to our expert team today to understand exactly which size, type and number of units are needed for your next project and receive a free, personalised pedestal layout.
Eterno Ivica SMA Levato
Fire Rated Pedestals (Height Adjustable)
All Fire Rated pedestals can withstand loads in excess of 5 tonnes per pedestal.

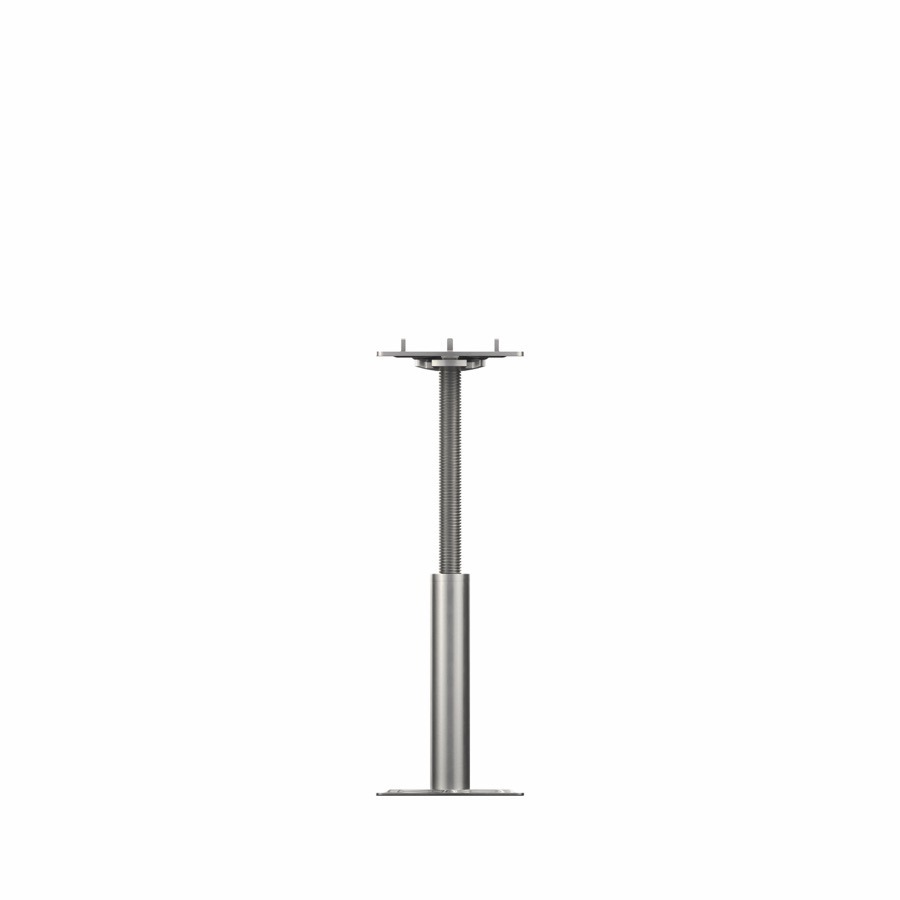

Height adjustable galvanised steel pedestal for raised access flooring, with self- levelling/tilting head that compensates for slopes up to 5%.
The pedestal comprises a square support base of dimensions of 100x100mm, 1.8mm thick, and a screw consisting of a threaded rod at the end of which is fixed a concave element that acts as the support seat of the tilting head.
All Fire Rated pedestals can be installed in either Self-levelling or fixed head mode via reversal of locking ring.
When a centre support is required (i.e. centre of a 600x600x20mm tile) use a standard SMA and bend or grind off the tabs accordingly.
Adjustment can be made manually or with the use of a 4mm allen key.
Technical Specification
Download the latest technical brochure to learn more about the product data, characteristics, sizing and more.
Alternatively, for expert advice contact us today.
Pedestal Positioning
The recommended positioning of the pedestals for 20mm porcelain paving tiles will determine the quantity you require for your project.
The following shows a few of the popular paving tile and pedestal layouts to achieve the best results.
Additional Pedestal positions below:
For further advice on pedestal placement and/or quantities, please contact our technical department who can create a layout drawing for you.
